Introduction
Fourier Transform Infrared Spectroscopy (FTIR) is a powerful analytical technique widely used in pharmaceutical Quality Control (QC) laboratories to identify, characterize, and verify chemical substances. It works on the principle that molecules absorb infrared radiation at specific wavelengths, producing a unique spectral fingerprint that can be used for identification and analysis.
In modern pharmaceutical industries—especially those operating under GMP and DGDA compliance in Bangladesh—FTIR plays a critical role in ensuring raw material identity, product quality, and regulatory adherence.
Principle of FTIR
FTIR measures how a sample absorbs infrared light across a range of wavelengths. The resulting spectrum represents molecular vibrations such as stretching and bending of chemical bonds.
- Each compound has a unique IR spectrum
- Peaks correspond to specific functional groups (e.g., O–H, C=O, N–H)
- Comparison with reference standards confirms identity
Key Components of FTIR Instrument
- IR Source – Emits broad-spectrum infrared radiation
- Interferometer (Michelson type) – Modulates IR signals
- Sample Compartment – Where sample interacts with IR radiation
- Detector – Measures absorbed energy
- Computer/System Software – Converts signal into spectrum (Fourier Transform)
Types of FTIR Sampling Techniques
1. ATR (Attenuated Total Reflectance)
- Most commonly used in QC labs
- Minimal sample preparation
- Suitable for solids, liquids, and semi-solids
2. KBr Pellet Method
- Sample mixed with potassium bromide
- Pressed into a transparent pellet
- Used for solid powders
3. Liquid Film Method
- Thin film between IR plates
- Used for oils, solvents
Applications of FTIR in Pharmaceutical QC
1. Raw Material Identification
FTIR is extensively used for identity testing of APIs and excipients.
- Matches sample spectrum with reference library
- Mandatory for incoming material approval
2. Finished Product Testing
- Confirms presence of API in dosage forms
- Detects formulation changes
3. Functional Group Analysis
- Identifies chemical structures
- Helps in impurity profiling
4. Compatibility Studies
- Evaluates interaction between API and excipients
- Critical for formulation development
5. Polymorphism Detection
- Differentiates crystalline forms
- Important for bioavailability and stability
6. Contamination & Adulteration Detection
- Detects foreign substances or mix-ups
- Supports deviation investigations

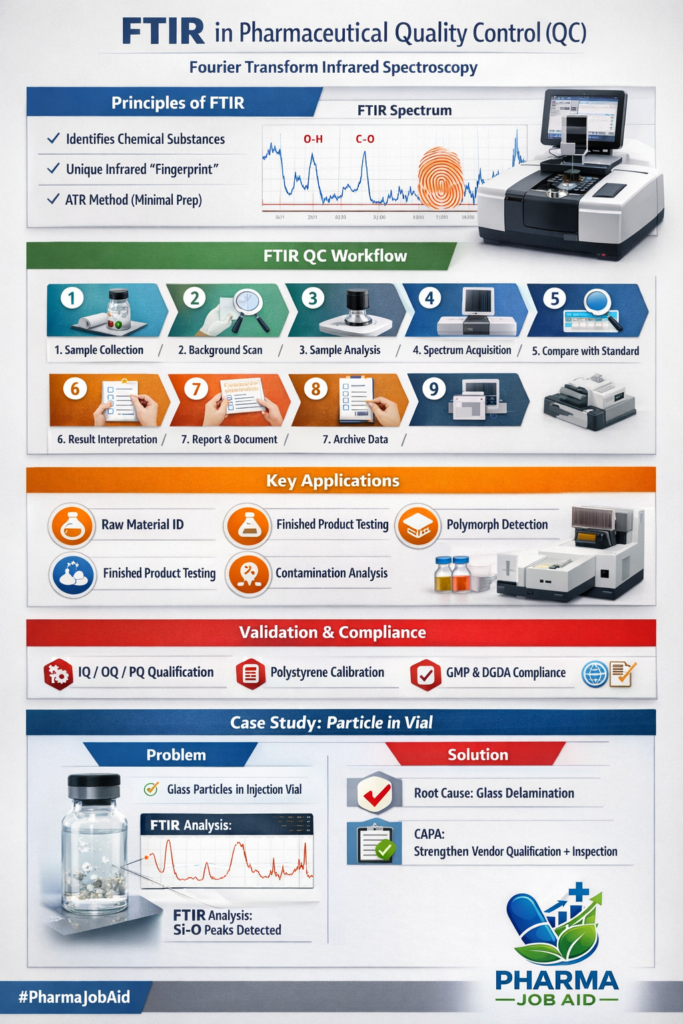

FTIR Workflow in QC Laboratory (GMP Perspective)
- Sample Collection (as per SOP)
- Instrument Calibration & System Suitability
- Background Spectrum Recording
- Sample Analysis (ATR/KBr)
- Spectrum Acquisition
- Comparison with Reference Standard
- Result Interpretation & Documentation
- Data Archiving (ALCOA+ compliance)
Advantages of FTIR in Pharma QC
- Rapid and non-destructive analysis
- Minimal sample preparation
- High specificity (fingerprint region)
- Cost-effective compared to chromatographic methods
- Suitable for routine QC testing
Limitations
- Less sensitive for trace impurities
- Requires clean and dry samples
- Overlapping peaks may complicate interpretation
- Quantitative analysis is limited compared to HPLC
GMP & Regulatory Considerations (DGDA/WHO)
- Instrument must be qualified (IQ/OQ/PQ)
- Use of certified reference standards required
- FTIR library validation must be documented
- Routine calibration and performance verification mandatory
- Data integrity must follow ALCOA+ principles
- Controlled SOPs for operation, cleaning, and maintenance
Interview Questions (Pharma QC – FTIR)
Q1: What is FTIR?
A: An analytical technique used to identify chemical substances based on IR absorption spectrum.
Q2: What is the fingerprint region?
A: Region between 1500–500 cm⁻¹ unique to each compound.
Q3: Why ATR is preferred in QC?
A: It requires minimal sample preparation and provides quick results.
Q4: Difference between FTIR and UV?
A: FTIR identifies functional groups, while UV measures electronic transitions.
Practical Example (Bangladesh Pharma QC)
In a typical QC lab of a Bangladeshi pharmaceutical company:
- Incoming Paracetamol API is tested using FTIR
- Spectrum is matched against pharmacopoeial standard (BP/USP)
- If match criteria pass → Material Released
- If mismatch → Deviation + Investigation initiated
How FTIR Actually Works (Step-by-Step Physics Insight)
- Infrared light passes through an interferometer (Michelson type)
- Light is split into two beams → reflected by mirrors
- Recombined beams create an interferogram (signal vs time)
- Mathematical Fourier Transform converts this into frequency domain (spectrum)
- Result: Absorbance vs Wavenumber (cm⁻¹)
Critical Regions in FTIR Spectrum
1. Functional Group Region (4000–1500 cm⁻¹)
- O–H stretch → 3200–3600 cm⁻¹
- N–H stretch → ~3300 cm⁻¹
- C=O stretch → ~1700 cm⁻¹
- Used for chemical class identification
2. Fingerprint Region (1500–500 cm⁻¹)
- Highly specific pattern
- Used for final identity confirmation
- Required for pharmacopoeial compliance
Advanced Applications in Pharmaceutical QC
1. API Identity Confirmation (Pharmacopoeial Requirement)
FTIR is listed in:
- United States Pharmacopeia (USP <197K>)
- British Pharmacopoeia
- European Pharmacopoeia
✔ Used as a primary or secondary ID test
✔ Spectral match must meet acceptance criteria (correlation index)
2. Excipient Verification
- Lactose, starch, MCC, magnesium stearate
- Prevents mix-ups during dispensing
- Critical for line clearance validation
3. Packaging Material Analysis
- Identification of polymers (PVC, HDPE, PET)
- Detects:
- Wrong packaging material
- Leachables/extractables risks
4. Cleaning Validation Support
- Residue detection on equipment surfaces
- Confirms removal of previous product traces
- Supports cross-contamination control
5. Stability & Degradation Studies
- Monitors:
- Oxidation
- Hydrolysis
- Functional group changes
- Supports a stability-indicating profile
6. Counterfeit Drug Detection
- Quick screening tool in field labs
- Detects:
- Wrong API
- Absence of API
- Substandard formulation
FTIR in Deviation & Investigation (Real GMP Scenario)
Case Example (Bangladesh Pharma Industry)
Deviation: Customer complaint – visible particulate in vial
FTIR Investigation:
- Particle isolated → analyzed via ATR
- Spectrum matched with:
- Glass → confirmed (Si–O peaks ~1100 cm⁻¹)
- Root Cause:
- Glass delamination / vial defect
✔ CAPA: Vendor qualification + incoming inspection strengthened
Method Validation of FTIR (As per ICH Q2 Guidelines)
International Council for Harmonisation provides guidance for validation.
Key Parameters:
- Specificity
- Ability to differentiate analyte from others
- Precision
- Repeatability of spectra
- Accuracy
- Match with reference standard
- Robustness
- Effect of pressure (ATR), humidity, temperature
- System Suitability
- Standard peak verification (e.g., polystyrene film)
Instrument Calibration & Qualification
Daily/Periodic Checks
- Background noise level
- Resolution check
- Wavenumber accuracy
Standard Calibration Material
- Polystyrene film standard
- Known peaks at:
- 1601 cm⁻¹
- 1583 cm⁻¹
- Known peaks at:
Qualification Stages
- IQ (Installation Qualification)
- OQ (Operational Qualification)
- PQ (Performance Qualification)
Mandatory for:
- GMP compliance
- DGDA audit readiness
Data Integrity & Documentation (ALCOA+)
FTIR data must comply with:
- Attributable – Analyst traceable
- Legible – Clear spectrum
- Contemporaneous – Real-time recording
- Original – Raw data preserved
- Accurate – No manipulation
Additional:
- Complete
- Consistent
- Enduring
- Available
FTIR vs Other QC Instruments
| Parameter | FTIR | HPLC | UV |
|---|---|---|---|
| Purpose | Identification | Quantification | Assay |
| Speed | Very Fast | Moderate | Fast |
| Sample Prep | Minimal | Complex | Minimal |
| Sensitivity | Low | High | Medium |
| Cost | Low | High | Low |
✔ FTIR is best for identity + screening
✔ HPLC is best for quantification
Common Errors in FTIR
- Dirty ATR crystal → distorted peaks
- Moisture interference → broad O–H peaks
- Incorrect baseline correction
- Use of unqualified reference spectra
- No SOP for spectral interpretation
✔ These are frequent DGDA audit observations
SOP Structure for FTIR (DGDA/GMP Style)
Sections to Include:
- Purpose
- Scope
- Responsibility
- Instrument Description
- Calibration Procedure
- Operating Procedure (ATR/KBr)
- System Suitability
- Acceptance Criteria
- Data Handling & Documentation
- Deviation Handling
- Annexures (Spectra examples)
Real-Time QC Workflow
- Receive sample from warehouse
- Verify COA vs purchase order
- Assign QC sample number
- Perform FTIR:
- Clean ATR crystal
- Run background
- Analyze sample
- Compare spectrum:
- Software library match
- Reference standard overlay
- Decision:
- Pass → Release
- Fail → Deviation raised
- Archive:
- Raw data + printed spectrum
Advanced Trend: FTIR with Chemometrics
Modern QC labs integrate FTIR with:
- Multivariate analysis
- AI-based spectral matching
Applications:
- Blend uniformity prediction
- Rapid PAT (Process Analytical Technology)
Aligned with:
- International Society for Pharmaceutical Engineering
Interview Questions
Q: What is ATR penetration depth?
A: Typically 0.5–2 microns depending on wavelength and crystal.
Q: Why polystyrene used in calibration?
A: It has well-defined, reproducible peaks.
Q: Can FTIR quantify API?
A: Limited—requires calibration models (chemometrics).
Conclusion
FTIR is not just a routine QC instrument—it is a regulatory-critical identity verification system that supports:
- GMP compliance
- Data integrity
- Rapid decision making
- Investigation and CAPA
In Bangladesh pharmaceutical industries, FTIR remains a frontline QC tool, especially during raw material release, deviation investigation, and DGDA inspections.
